Retaining wall with a wide variety of basket facing solutions

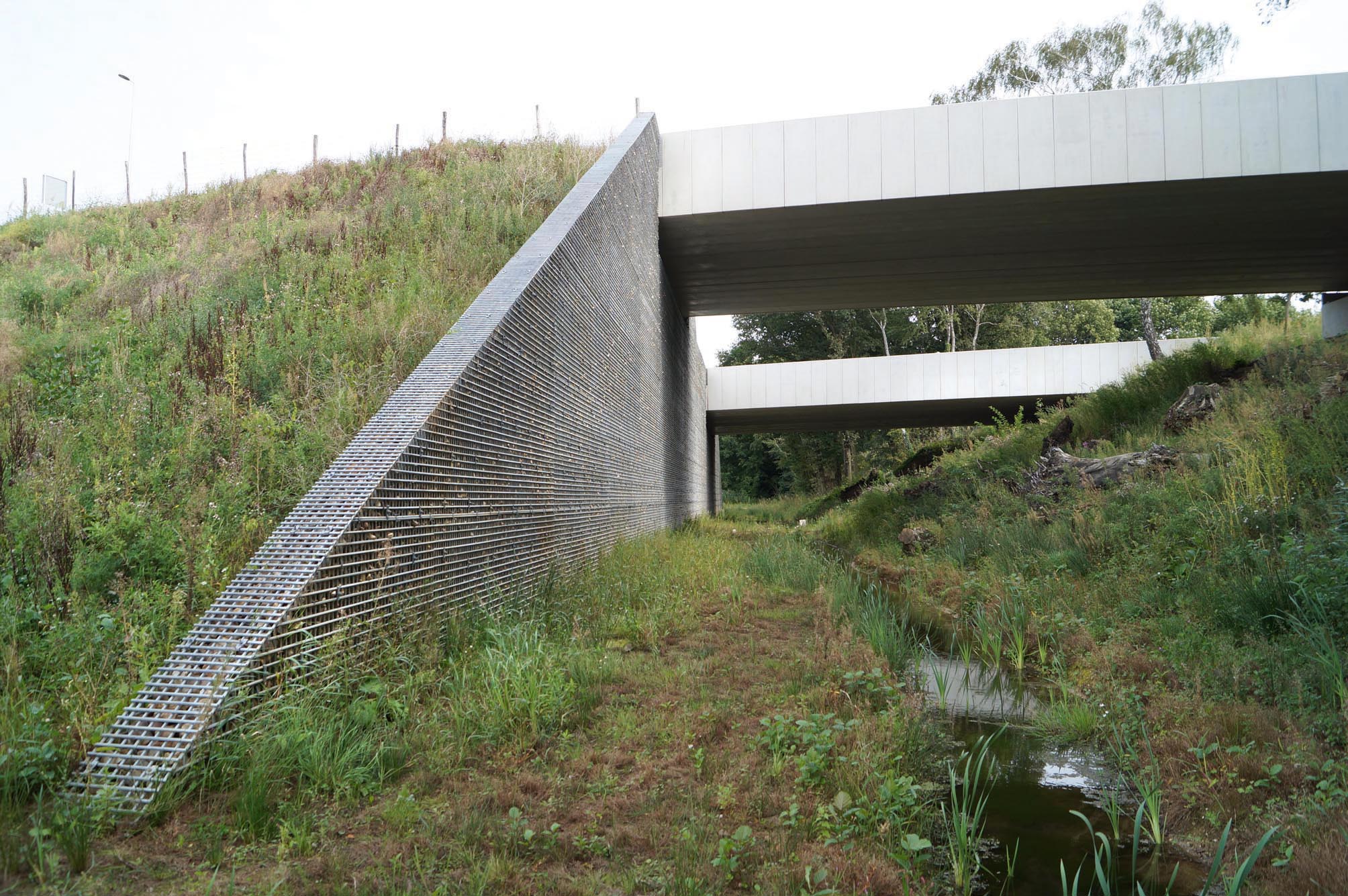

Fortrac Gabion is a system consisting of a reinforced soil body and a facing of steel grid elements (so-called stone baskets or dump baskets). The soil body is reinforced by laying Fortrac geogrids and earth in layers. The facing is made of corrosion-protected steel grid elements. It is then individually filled with natural stones. Depending on the challenge, the backfilled steel grid components can actively contribute to the overall statics, e.g. as a heavyweight wall or bridge abutment or passively be attached or suspended from the reinforced soil body with an optical and protective function. With our system solutions you can realise inclinations up to 90° and very high retaining walls. The fast soil body construction as well as prefabricated, easy to fill and possibly prefilled gabion elements lead to very economical construction processes. With regard to noise protection, it has been proven that a corresponding system configuration can achieve the highly absorptive noise protection category A 3 according to German standards.

System benefits

  • Wide ranging design options

  • Resistant to differential settlement

  • Rapid installation and easy repair

  • Low maintenance, with minimum costs for care and general upkeep

  • Fire, vandal and UV-resistant

  • Can be designed to meet German noise control category A 3

Our system models

Tie rod system
  • Double-skin retaining structure with corrosion protected steel
  • Particularly suitable for settlement-prone subsoils
  • Staggered erection of earthworks and facing possible
  • Repair of individual facing sections possible (e.g. after impact)
Tie Bar System - Corrosion Protected Steel - Huesker Fortrac Gabion
Half gabion facing
  • System with structural facing units
  • Steel mesh with spacers and buckles
  • Custom-fabricated to fit slope inclinations
Half gabions Facing - Steel mesh with spacers - Huesker solutions
Full gabion facing
  • Structural and non-structural facing units possible
  • Gabions can be factory-assembled and prefilled
  • Very short construction times in case of pre-assembled delivery to site
  • Easily replaceable facings (e.g. after impact)
Full gabions Facing - Pre-assembled front elements - Huesker Gabions

Component kit

Everything for your Gabion system model

  • Interaction flexible Fortrac geogrid
  • Erosion and wash-out protection
  • Tie rod system components (corrosion protected)
  • Half and full gabion units (corrosion protected)
  • Compression and frost-resistant stone filling
  • Sound-absorbing mat (for noise control)
Fortrac Geogrid - Composite Flexible Geogrid Component - Huesker Solutions
Anchor rod system components - Corrosion protected components - Huesker Gabions
Basetrac Nonwoven close-up - Huesker Geotextiles
Half and full gabion elements - Corrosion protected gabions - Huesker solutions
Pressure-stable, frost-proof stone filling - Gabion Components - Huesker Products
Sound absorbing mat - Sound insulation components - Huesker Gabions
