SoilTain® Bags

The all-rounder of geotextile sand containers

SoilTain Bags are small and large-sized geosynthetic sand containers for securing coastal, shore and harbour areas at risk of erosion. Thanks to the flexible shell, the deformable filling material can compensate for subsoil as well as structural deformations. Increased structural safety is thus ensured.

With a filter-stable construction made of SoilTain Bags, mineral filter layers can be completely replaced and material can be saved. In addition, the filter stability allows for increased structural safety. In addition to the conventional SoilTain Bags, our SoilTain Bags Xtreme are now also available. The unique two-layer composite and a high material thickness (up to 1,800 g/m²) provide optimum protection against vandalism and other extreme mechanical influences.

They are particularly suitable for permanently exposed revetments, scour protection and structures with required adaptability of the components.

Benefits SoilTain Bags

  • Suitable for both temporary and permanent applications

  • Application-appropriate raw material and product selection

  • Material savings thanks to stable filter construction

  • Strong against extreme mechanical influences

  • High adaptability enables safe building structures

  • Saving of cost-intensive material transports through use of local materials as fillers

  • Good integration into the natural environment

SoilTain Bags Xtreme

Extreme robustness for exposed structures
  • Increased UV stability
  • High sand retention capacity
  • Resistant to abrasion and vandalism
  • Unique two-layer composite
  • Nonwoven fabric basis weight 1,200 g/m² - 1,800 g/m²
  • Standard product sizes up to 2.5 m³



To the SoilTain coastal protection applications

SoilTain Bags

The solution for temporarily exposed or permanently overbuilt structures
  • Specially tested materials (BAW)
  • Basis weight 600 g/m² - 1,000 g/m²
  • Nonwovens, fabrics, composites possible
  • Standard product sizes up to 1.0 m³
  • Easy handling on site



To the SoilTain coastal protection applications

Products and configuration options
Everything for your SoilTain Bags system
  • SoilTain Bags Xtreme
  • SoilTain Bags
  • Transport/filling loops
  • Different closures
Rohmaterial SoilTain Bags Xtreme
Raw material SoilTain Bags
Detailed view of the transport and filling loops in the system component kit
Different closures with knot or seam with hand sewing machine

Easy filling and installation

Step 1

Filling

With the help of a funnel and excavator, the SoilTain Bags can be easily filled

Step 2

Closure

The geotextile bags, which are made of a waterproof non-woven fabric, can be easily closed with a hand sewing machine

Step 3

Installation

For a quick and easy installation we recommend the use of an excavator or similar equipment

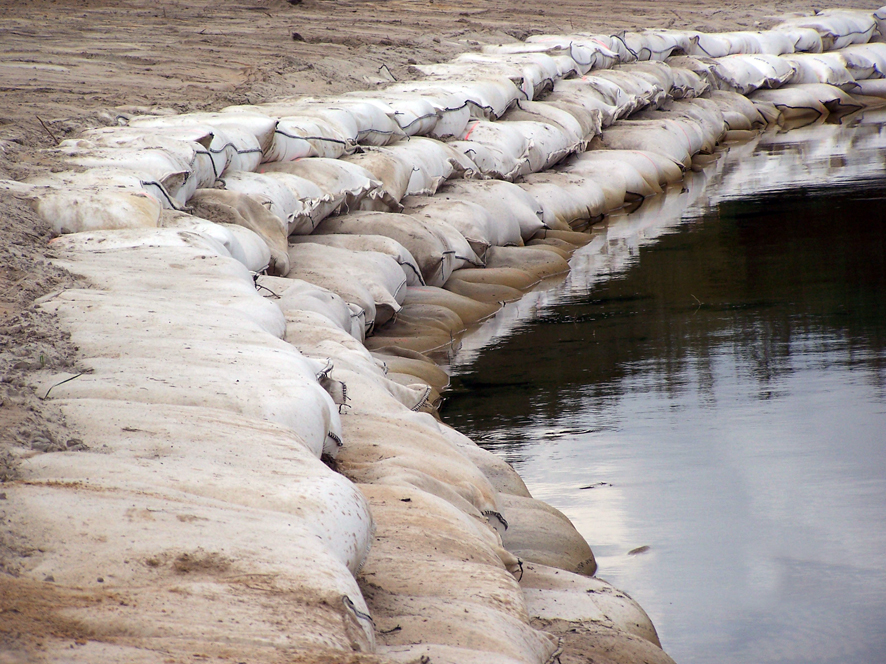

SoilTain Bags application examples from practice

Even with extreme challenges many-sided application possibilities
